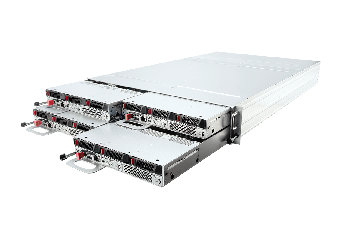

CD270-S3061-X4
2U 4-Nodes chassis, DC-MHS architecture
- No processors, graphics card, RAM, hard drive, or operating system. If you need a ready-made configuration, please contact us. If you need a ready-made configuration please contact us.
- 2U4N (DC-MHS architecture)
- Single Intel Xeon 6700 series processors, TDP up to 350W, per node
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Do you have an account? Log in, to see our prices and get your discount
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
CD270-S3061-X4
Description
Application
- Cloud Computing Service
- Content Delivery Network
Technical Specification
Technical data
| Form Factor | 2U4N |
| Dimensions | 448mm(17.6") W x 87mm(3.4") H x 747mm(29.4") |
| Processor | Single Intel Xeon 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W, per node |
| Socket | (1) LGA4710 (Socket E2) per node |
| Chipset | N/A |
| Memory | (16) DDR5 DIMM Slots, 8 channels (2DPC), RDIMM/RIMM-3DS/MRDIMM, per node - Max. Frequency: RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) MRDIMM: 8000MT/s (only support 1DPC) - Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM) *MRDIMMs are only supported with Intel Xeon 6 P-core series processors |
| Drive Bays | (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node |
| Expansion Slots | None |
| Networking | (1) PCIe 5.0 x16 OCP3.0 slot (NCSI supported) per node |
| RAID | NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Front I/O | Per node: (3) Hot-swap 2.5” U.2 drive bays (1) 1000Base-T Dedicated Server Management Port (1) COM USB Type A port (1) USB 2.0 Type-A Port (1) Mini Display port (1) Power LED (Green) Button (1) UID LED (Blue) Button (1) Status LEDs: Green/Red |
| Rear I/O | N/A |
| Security | Node present detection TPM2.0 module supported (optional) ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server Management | Per node: (1) 1000Base-T Dedicated Server Management Port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS and dual BMC eMMC for local BMC storage media |
| Environment | System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (1+1) Redundant 2700W CRPS 80PLUS Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm Rating: AC Input: 100-127Vac, 12A, 50-60Hz Output: Max 1008W, DC +12V/84A, +12Vsb/3A AC Input: 200-240Vac, 16A, 50-60Hz Output: Max 2700W, DC +12V/225A, +12Vsb/3A DC Input: 240V, 16A Output: Max 2700W *C19 power cords are required and will be offered as optional accessories. |
| Cooling | (1) EVAC air cooling modules for max. 360W CPU per node (4) Rear 8080 Hot-swap FANs per system |
| Certification | CE, FCC (Class A) |
