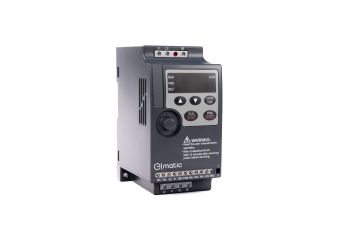

Scalar Control Inverter | 0.75kW-37kW 3X400VAC
EL1000
U/f scalar inverter with three-phase power supply 3 x 400V AC
- Small size, low price
- U/f control
- RS485 port, Modbus RTU, ASCII protocols
- 4 digital inputs,1 relay output, 1 analog input 0-10V, 0/4-20mA
- Built-in PID controller
- Multispeed function - up to 15 speed settings
- Built-in LED display with potentiometer
- Fly start
Free shipping from €300
Promocja cenowa na model HDR-15-5
Scalar Control Inverter | 0.75kW-37kW 3X400VAC
Models
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-00R7G4-CFalownik EPD: 0,75kW,400VAC,3PH,V/F,EMCIn stockWarranty: €145.14 €118.00€145.14Login to check your price EL1000-00R7G4-CFalownik EPD: 0,75kW,400VAC,3PH,V/F,EMCAvailability:In stockNet price:€145.14 €118.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-01R5G4VFD EPD: 1,5kW,400VAC,3PH,V/FIn stockWarranty: €146.37 €119.00€146.37Login to check your price EL1000-01R5G4VFD EPD: 1,5kW,400VAC,3PH,V/FAvailability:In stockNet price:€146.37 €119.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-02R2G4VFD EPD: 2,2kW,400VAC,3PH,V/FIn stockWarranty: €156.21 €127.00€156.21Login to check your price EL1000-02R2G4VFD EPD: 2,2kW,400VAC,3PH,V/FAvailability:In stockNet price:€156.21 €127.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-03R7G4VFD EPD: 3,7kW,400VAC,3PH,V/FIn stockWarranty: €205.41 €167.00€205.41Login to check your price EL1000-03R7G4VFD EPD: 3,7kW,400VAC,3PH,V/FAvailability:In stockNet price:€205.41 €167.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-05R5G4VFD EPD: 5,5kW,400VAC,3PH,V/FIn stockWarranty: €206.64 €168.00€206.64Login to check your price EL1000-05R5G4VFD EPD: 5,5kW,400VAC,3PH,V/FAvailability:In stockNet price:€206.64 €168.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-07R5G4VFD EPD: 7,5kW,400VAC,3PH,V/FIn stockWarranty: €307.50 €250.00€307.50Login to check your price EL1000-07R5G4VFD EPD: 7,5kW,400VAC,3PH,V/FAvailability:In stockNet price:€307.50 €250.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-011G4VFD EPD: 11kW,400VAC,3PH,V/FIn stockWarranty: €369.00 €300.00€369.00Login to check your price EL1000-011G4VFD EPD: 11kW,400VAC,3PH,V/FAvailability:In stockNet price:€369.00 €300.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-15G4VFD EPD: 15kW,400VAC,3PH,V/FOut of stock Warranty: €492.00 €400.00€492.00Login to check your price EL1000-15G4VFD EPD: 15kW,400VAC,3PH,V/FAvailability: Out of stockNet price:€492.00 €400.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-018.5G4VFD EPD: 18kW,400VAC,3PH,V/FOut of stock Warranty: €543.66 €442.00€543.66Login to check your price EL1000-018.5G4VFD EPD: 18kW,400VAC,3PH,V/FAvailability: Out of stockNet price:€543.66 €442.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-22G4VFD EPD: 22kW,400VAC,3PH,V/FOut of stock Warranty: €585.48 €476.00€585.48Login to check your price EL1000-22G4VFD EPD: 22kW,400VAC,3PH,V/FAvailability: Out of stockNet price:€585.48 €476.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-30G4VFD EPD: 30kW,400VAC,3PH,V/FIn stockWarranty: €927.42 €754.00€927.42Login to check your price EL1000-30G4VFD EPD: 30kW,400VAC,3PH,V/FAvailability:In stockNet price:€927.42 €754.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-37G4VFD EPD: 37kW,400VAC,3PH,V/FIn stockWarranty: €1,047.96 €852.00€1,047.96Login to check your price EL1000-37G4VFD EPD: 37kW,400VAC,3PH,V/FAvailability:In stockNet price:€1,047.96 €852.00
Description
Elmatic's inverters are three series of inverters designed for different applications and environments:
- >> Here you are! >> EL1000 - for light duty applications not requiring high starting torque;
Check the model with 1x230VAC single-phase power supply - ED2000 - for applications requiring higher precision speed control;
- EDS - dedicated to pump or fan applications because of its reinforced housing (IP65).
Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In simple EL1000 inverters with three-phase power supply 3x400VAC, these will include:
- RS485 port; Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
- Built-in PID controller;
- Simple PLC;
- Multispeed function - up to 15 speed settings;
- Built-in LED display with potentiometer;
- Fly start;
- Free configuration software.
The EL1000 series inverter is:
- Small size, low price;
- U/f scalar control;
- 4 programmable digital inputs;
- 1 relay output;
- 1 analog input 0-10V, 0/4-20mA;
- Built-in potentiometer.
>> See EL1000 model with 1x230VAC single-phase power supply
EL1000 inverters with a power greater than 37kW on special order.
Contact: plc@elmark.com.pl
Technical Specification
Technical data
Power | Input Voltage | 170-240VAC, Single Phase 330-440VAC, Three Phase |
Input Frequency | 50/60 Hz | |
Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
0.1-400Hz | ||
Overload Capacity | 150%, 60 seconds | |
Control | Control Method | V/F control |
Control Setting | MODBUS, Analog, Digital, PID, Multispeed (15 speeds) | |
Communication | MODBUS RTU RS-485 | |
Input | Analog Inputs | 1 input 0-10V or 0-20mA |
Digital Inputs | 4 inputs | |
Output | Analog Outputs | - |
Digital Outputs | - | |
Relay Outputs | 1 Programmable Multi-functional Output | |
Features | 3-wire control | √ |
Connection of the braking resistor | X | |
Built-in potentiometer | √ | |
General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
Altitude | < 1000m | |
Enclosure Rating | IP20 | |
Mounting Options | Wall and Rail (<5.5kW) | |
Wall (≥5.5kW) | ||
Cooling | Forced Air-cooling |
