Ready for work faness Box PC, Intel N97/i3-N305, 8/16 GB RAM, 128/256 GB SSD, Windows 11 IoT LTSC
- Built-in Intel N97 / i3-N305 (depends on chosen model)
- Built-in 8GB DDR5 (N97 model) / 16GB DDR5 (i3-N305 model)
- Dual independent displays: DP, HDMI
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- Built-in 128GB storage (N97 model) / 256GB storage (i3-N305 model)
- 4 USB 3.2, 6 USB 2.0
- 2x COM (1x RS-232, RS-232/422/485)
- GPIO (4*GPI; 4*GPO)
- 2 COM or 2 CANbus (Option by M.2 Module)
- 4 opening reserved for antennas
- Anti-Vibration & Shockproof Design to Compliance IEC 61373
- Wide Voltage DC-IN 9~36V
- Compact with fanless design
- Windows 11 IoT LTSC included
from €876.99 €713.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddELMATIC SWIFT STDBoxPC, N97, 8GB, 128GB SSD, Win11IoTRecommended
In stockWarranty: €876.99 €713.00€876.99Login to check your price ELMATIC SWIFT STDBoxPC, N97, 8GB, 128GB SSD, Win11IoTRecommended
Availability:In stockNet price:€876.99 €713.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddELMATIC SWIFT PROBoxPC, i3-N305, 16GB, 256GB SSD, Win11IoTRecommended
In stockWarranty: €1,201.71 €977.00€1,201.71Login to check your price ELMATIC SWIFT PROBoxPC, i3-N305, 16GB, 256GB SSD, Win11IoTRecommended
Availability:In stockNet price:€1,201.71 €977.00
Description

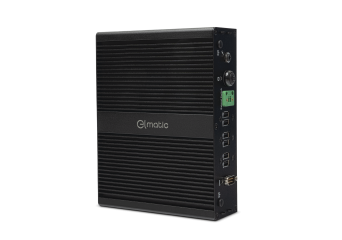

The ELMATIC SWIFT is a fanless Box PC available in two processor versions: Intel N97 and Intel i3-N305. The version with the N97 processor is equipped with 8 GB of DDR5 RAM and 128 GB of built-in SSD storage, while the version with the i3-N305 processor offers 16 GB of DDR5 RAM and 256 GB of built-in SSD storage. Both versions support dual independent displays through DisplayPort and HDMI ports. The device features two 2.5 GbE LAN ports with RJ-45, four USB 3.2 ports, six USB 2.0 ports, and two COM ports (one RS-232 and one RS-232/422/485). Additionally, the computer is equipped with GPIO (4 inputs and 4 outputs) and offers expansion options for two COM ports or two CANbus ports via an M.2 module. The ELMATIC SWIFT also includes four antenna holes and ensures protection against vibrations and shocks according to the IEC 61373 standard. The device supports a wide DC-IN voltage range from 9V to 36V. Windows 11 IoT LTSC is included in the package.
Technical Specification
Technical data
| Model | |||
| Model | ELMATIC SWIFT STD | ELMATIC SWIFT PRO | |
| CPU | |||
| CPU | Intel IOTG Alder Lake-N Processor N97 | Intel IOTG Alder Lake-N Core i3-N305 | |
| Memory | |||
| Memory | Built-in 8 GB DDR5 | Built-in 16 GB DDR5 | |
| Storage | |||
| Slot 2,5" HDD | Built-in 128GB SSD | Built-in 256GB SSD | |
| Slot mSATA | - | ||
| Expansions | |||
| Slot M.2 | 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280 1 x M.2 E key (PCIe x1, USB 2.0), 2230 |
||
| Slot miniPCIe | - | ||
| I/O | |||
| DisplayPort | 1 | ||
| HDMI | 1 | ||
| Audio | Mic in, Line out | ||
| Gigabit Ethernet | 2 | ||
| USB 3.2 | 4 | ||
| USB 2.0 | 6 | ||
| Serial Ports | 2x COM ports COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232 COM3~4: Option by M.2 Module |
||
| GPIO | 8-bit (4*GPI; 4*GPO), 5V | ||
| CANbus | 2 (Option by M.2 Module) | ||
| TPM | Infineon SLB9672VU2.0 | ||
| Operating System | |||
| Operating System | Windows 11 IoT LTSC included | ||
| Environment | |||
| Working temperature | -10 ~ 40°C | ||
