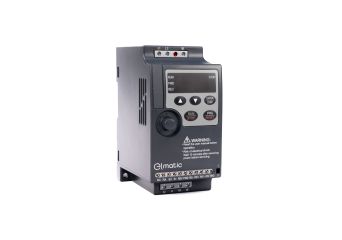

Scalar Control Inverter | 0.4kW-2.2kW 1X230VAC
EL1000
U/f scalar inverter with single-phase power supply 1 x 230V AC
- Small size, low price
- U/f control
- RS485 port, Modbus RTU, ASCII protocols
- 4 digital inputs,1 relay output, 1 analog input 0-10V, 0/4-20mA
- Built-in PID controller
- Multispeed function - up to 15 speed settings
- Built-in LED display with potentiometer
- Fly start
from €110.70 €90.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Scalar Control Inverter | 0.4kW-2.2kW 1X230VAC
Models
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-00R4G2-CFalownik EPD: 0,4kW,230VAC,1PH,V/F,EMCRecommended
In stockWarranty: €110.70 €90.00€110.70Login to check your price EL1000-00R4G2-CFalownik EPD: 0,4kW,230VAC,1PH,V/F,EMCRecommended
Availability:In stockNet price:€110.70 €90.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-00R7G2-CFalownik EPD: 0,75kW,230VAC,1PH,V/F,EMCIn stockWarranty: €115.62 €94.00€115.62Login to check your price EL1000-00R7G2-CFalownik EPD: 0,75kW,230VAC,1PH,V/F,EMCAvailability:In stockNet price:€115.62 €94.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-01R5G2-CFalownik EPD: 1,5kW,230VAC,1PH,V/F,EMCIn stockWarranty: €140.22 €114.00€140.22Login to check your price EL1000-01R5G2-CFalownik EPD: 1,5kW,230VAC,1PH,V/F,EMCAvailability:In stockNet price:€140.22 €114.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEL1000-02R2G2VFD EPD: 2,2kW,230VAC,1PH,V/FIn stockWarranty: €148.83 €121.00€148.83Login to check your price EL1000-02R2G2VFD EPD: 2,2kW,230VAC,1PH,V/FAvailability:In stockNet price:€148.83 €121.00
Description
Elmatic's inverters are three series of inverters designed for different applications and environments:
- >> Here you are! >> EL1000 - for light duty applications not requiring high starting torque;
Check the model with 3x400VAC three-phase power supply - ED2000 - for applications requiring higher precision speed control;
- EDS - dedicated to pump or fan applications because of its reinforced housing (IP65).
Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In simple EL1000 inverters with 230VAC single-phase power supply, these will include:
- RS485 port; Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
- Built-in PID controller;
- Simple PLC;
- Multispeed function - up to 15 speed settings;
- Built-in LED display with potentiometer;
- Fly start;
- Free configuration software.
The EL1000 series inverter is:
- Small size, low price;
- U/f scalar control;
- 4 programmable digital inputs;
- 1 relay output;
- 1 analog input 0-10V, 0/4-20mA;
- Built-in potentiometer.
Technical Specification
Technical data
Power | Input Voltage | 170-240VAC, Single Phase 330-440VAC, Three Phase |
Input Frequency | 50/60 Hz | |
Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
0.1-400Hz | ||
Overload Capacity | 150%, 60 seconds | |
Control | Control Method | V/F control |
Control Setting | MODBUS, Analog, Digital, PID, Multispeed (15 speeds) | |
Communication | MODBUS RTU RS-485 | |
Input | Analog Inputs | 1 input 0-10V or 0-20mA |
Digital Inputs | 4 inputs | |
Output | Analog Outputs | - |
Digital Outputs | - | |
Relay Outputs | 1 Programmable Multi-functional Output | |
Features | 3-wire control | √ |
Connection of the braking resistor | X | |
Built-in potentiometer | √ | |
General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
Altitude | < 1000m | |
Enclosure Rating | IP20 | |
Mounting Options | Wall and Rail (<5.5kW) | |
Wall (≥5.5kW) | ||
Cooling | Forced Air-cooling |
