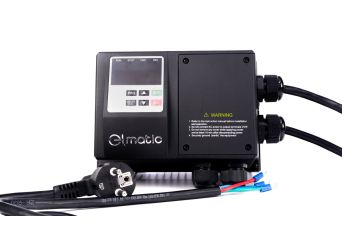

Scalar Control Inverter | IP65 | 0.75kW-2.2kW 1X230VAC
EDS
U/f scalar inverter with single phase power supply 1 x 230V AC and IP65
- Dedicated to pump or fan applications
- Direct mounting on motor or wall mounted
- U/f scalar control
- Counter input
- Simple PLC function
- RS485 port, Modbus RTU, ASCII protocols
- 4 digital inputs, 2 relay outputs, 1 analog input 0-10V, 0/4-20mA
- 'Energy saving' function
- Built-in PID controller
- Multispeed function - up to 15 speed settings
- Built-in LED display
- Reinforced housing, IP65
from €179.58 €146.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Scalar Control Inverter | IP65 | 0.75kW-2.2kW 1X230VAC
Models
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEDS0007T2B-CFalownik EPD: 0,75kW,230VAC,1PH,F&P,EMCIn stockWarranty: €179.58 €146.00€179.58Login to check your price EDS0007T2B-CFalownik EPD: 0,75kW,230VAC,1PH,F&P,EMCAvailability:In stockNet price:€179.58 €146.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEDS0015T2BFalownik EPD: 1,5kW,230VAC,1PH,F&POut of stock Warranty: €194.34 €158.00€194.34Login to check your price EDS0015T2BFalownik EPD: 1,5kW,230VAC,1PH,F&PAvailability: Out of stockNet price:€194.34 €158.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddEDS0022T2BFalownik EPD: 2,2kW,230VAC,1PH,F&POut of stock Warranty: €211.56 €172.00€211.56Login to check your price EDS0022T2BFalownik EPD: 2,2kW,230VAC,1PH,F&PAvailability: Out of stockNet price:€211.56 €172.00
Description
Elmatic's inverters are three series of inverters designed for different applications and environments:
- EL1000 - for light duty applications not requiring high starting torque;
- ED2000 - for applications requiring higher precision speed control;
- >> Here you are! >> EDS - dedicated to pump or fan applications because of its reinforced housing (IP65).
Check the model with 3x400VAC three-phase power supply
Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In enhanced EDS inverters with 230VAC single-phase power supply, these will include:
- RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
- Built-in PID controller;
- Simple PLC;
- Multispeed function - up to 15 speed settings;
- Volatile start;
- 'Energy saving' function;
- Free configuration software.
The EDS series inverter is:
- Direct motor mounting or wall mounting;
- U/f scalar control;
- 4 programmable digital inputs (from 3.7kW 6 inputs);
- 2 relay outputs;
- 1 analog input 0-10V, 0/4-20mA;
- Reinforced housing, IP65.
Technical Specification
Technical data
Power | Input Voltage | 170-240VAC, Single Phase 330-440VAC, Three Phase |
Input Frequency | 50/60 Hz | |
Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
0.1-400Hz | ||
Overload Capacity | 150%, 60 seconds | |
Control | Control Method | V/F control, Space vector control |
Control Setting | MODBUS, Analog, Digital, PID, Multispeed (15 speeds) | |
Communication | MODBUS RTU RS-485 | |
Input | Analog Inputs | 1 input 0-10V or 0-20mA |
Digital Inputs | Up to 6: 4 inputs ≤2.2kW, 6 inputs available from >2.2kW |
|
Output | Analog Outputs | - |
Digital Outputs | - | |
Relay Outputs | Up to 2: 2 Programmable Multi-functional Output Normaly Open 1 output (normaly open and normaly close) available from >5.5kW |
|
Features | 3-wire control | X |
Connection of the braking resistor | X | |
Built-in potentiometer | X | |
General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
Altitude | < 1000m | |
Enclosure Rating | IP65 | |
Mounting Options | Wall | |
Engine cover | ||
Cooling | Forced Air-cooling |
