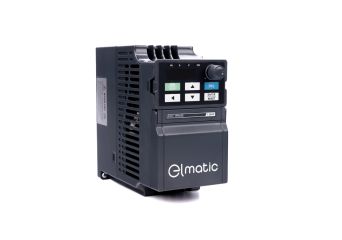

Vector Control Inverter | 0.4kW-90kW 3X400VAC
ED2400
- Power range: from 0.4kW to 90kW
- Input voltage: 3 x 400V AC
- Output voltage: 3 x 400V AC
- Short circuit, overload, phase failure protection
- Control methods: Sensorless vector control, scalar U/f
from €179.58 €146.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Vector Control Inverter | 0.4kW-90kW 3X400VAC
Models
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-0R4GVFD EPD: 0,4kW,400VAC,3PH,VectorIn stockWarranty: €179.58 €146.00€179.58Login to check your price ED2400-0R4GVFD EPD: 0,4kW,400VAC,3PH,VectorAvailability:In stockNet price:€179.58 €146.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-0R75G-CFalownik EPD: 0,75kW,400VAC,3PH,V,EMCIn stockWarranty: €196.80 €160.00€196.80Login to check your price ED2400-0R75G-CFalownik EPD: 0,75kW,400VAC,3PH,V,EMCAvailability:In stockNet price:€196.80 €160.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-01R5G-CFalownik EPD: 1,5kW,400VAC,3PH,V,EMCIn stockWarranty: €214.02 €174.00€214.02Login to check your price ED2400-01R5G-CFalownik EPD: 1,5kW,400VAC,3PH,V,EMCAvailability:In stockNet price:€214.02 €174.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-02R2G-CFalownik EPD: 2,2kW,400VAC,3PH,V,EMCIn stockWarranty: €248.46 €202.00€248.46Login to check your price ED2400-02R2G-CFalownik EPD: 2,2kW,400VAC,3PH,V,EMCAvailability:In stockNet price:€248.46 €202.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-03R7G/5R5P-CFalownik EPD: 3,7kW,400VAC,3PH,V,EMCIn stockWarranty: €280.44 €228.00€280.44Login to check your price ED2400-03R7G/5R5P-CFalownik EPD: 3,7kW,400VAC,3PH,V,EMCAvailability:In stockNet price:€280.44 €228.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-05R5G-CFalownik EPD: 5,5kW,400VAC,3PH,V,EMCIn stockWarranty: €319.80 €260.00€319.80Login to check your price ED2400-05R5G-CFalownik EPD: 5,5kW,400VAC,3PH,V,EMCAvailability:In stockNet price:€319.80 €260.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-07R5G/11PVFD EPD: 7,5kW,400VAC,3PH,VectorIn stockWarranty: €403.44 €328.00€403.44Login to check your price ED2400-07R5G/11PVFD EPD: 7,5kW,400VAC,3PH,VectorAvailability:In stockNet price:€403.44 €328.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-11G/15P-CFalownik EPD: 11kW,400VAC,3PH,Vector,EMCIn stockWarranty: €452.64 €368.00€452.64Login to check your price ED2400-11G/15P-CFalownik EPD: 11kW,400VAC,3PH,Vector,EMCAvailability:In stockNet price:€452.64 €368.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-15G18.5PVFD EPD: 15kW,400VAC,3PH,VectorIn stockWarranty: €580.56 €472.00€580.56Login to check your price ED2400-15G18.5PVFD EPD: 15kW,400VAC,3PH,VectorAvailability:In stockNet price:€580.56 €472.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-18.5G22PVFD EPD: 18,5kW,400VAC,3PH,VectorIn stockWarranty: €674.04 €548.00€674.04Login to check your price ED2400-18.5G22PVFD EPD: 18,5kW,400VAC,3PH,VectorAvailability:In stockNet price:€674.04 €548.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-22G30PVFD EPD: 22kW,400VAC,3PH,VectorIn stockWarranty: €769.98 €626.00€769.98Login to check your price ED2400-22G30PVFD EPD: 22kW,400VAC,3PH,VectorAvailability:In stockNet price:€769.98 €626.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-30G37PVFD EPD: 30kW,400VAC,3PH,VectorIn stockWarranty: €1,011.06 €822.00€1,011.06Login to check your price ED2400-30G37PVFD EPD: 30kW,400VAC,3PH,VectorAvailability:In stockNet price:€1,011.06 €822.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-37G45PVFD EPD: 37kW,400VAC,3PH,VectorOut of stock Warranty: €1,200.48 €976.00€1,200.48Login to check your price ED2400-37G45PVFD EPD: 37kW,400VAC,3PH,VectorAvailability: Out of stockNet price:€1,200.48 €976.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-45G55PVFD EPD: 45kW,400VAC,3PH,VectorOut of stock Warranty: €1,687.56 €1,372.00€1,687.56Login to check your price ED2400-45G55PVFD EPD: 45kW,400VAC,3PH,VectorAvailability: Out of stockNet price:€1,687.56 €1,372.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-55GVFD EPD: 55kW,400VAC,3PH,VectorOut of stock Warranty: €1,800.72 €1,464.00€1,800.72Login to check your price ED2400-55GVFD EPD: 55kW,400VAC,3PH,VectorAvailability: Out of stockNet price:€1,800.72 €1,464.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-75G90PVFD EPD: 75kW,400VAC,3PH,VectorOut of stock Warranty: €2,437.86 €1,982.00€2,437.86Login to check your price ED2400-75G90PVFD EPD: 75kW,400VAC,3PH,VectorAvailability: Out of stockNet price:€2,437.86 €1,982.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2400-90G110PVFD EPD: 90kW,400VAC,3PH,VectorOut of stock Warranty: €2,998.74 €2,438.00€2,998.74Login to check your price ED2400-90G110PVFD EPD: 90kW,400VAC,3PH,VectorAvailability: Out of stockNet price:€2,998.74 €2,438.00
Description
Elmatic's inverters are three series of inverters designed for different applications and environments:
- EL1000 - for light duty applications not requiring high starting torque;
- >> Here you are! >> ED2000 - for applications requiring higher precision speed control;
Check the model with 1x230VAC single-phase power supply - EDS - dedicated to pump or fan applications because of its reinforced housing (IP65).
Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In advanced ED2000 inverters with 3x400VAC three-phase power supply, this will include:
- RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
- Built-in PID controller;
- Simple PLC;
- Multispeed function - up to 15 speed settings;
- 'Energy saving' function;
- Free configuration program.
The ED2000 series inverter is:
- Sensorless vector control or U/f scalar control;
- Compact housing, simple operation;
- 6 programmable digital inputs;
- 2 relay outputs;
- 1 analog input 0-10V, 0/4-20mA;
- Built-in LCD display and potentiometer;
- Wall mounting.
Technical Specification
Technical data
Power | Input Voltage | 170-240VAC, Single Phase 330-440VAC, Three Phase |
Input Frequency | 50/60 Hz | |
Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
0.1-320Hz | ||
Overload Capacity | HD: 150% by 60s; 180% by 3s ND: 120% by 60s; 150% by 3s |
|
Control | Control Method | Sensorless flux vector control (SFVC) ; V/F control |
Control Setting | MODBUS, Analog, Digital, PID, Multispeed (15 speeds) | |
Communication | MODBUS RTU RS-485 | |
Input | Analog Inputs | 1 input 0-10V or 0-20mA |
Digital Inputs | 6 inputs (including 1 HDI 100kHz) | |
Output | Analog Outputs | 1 output 0-10V 0-20mA |
Digital Outputs | 1 Multi-function output terminal 48VDC/50mA | |
Relay Outputs | 1 Programmable Multi-functional Output | |
Features | 3-wire control | √ |
Connection of the braking resistor | √ | |
Built-in potentiometer | √ | |
General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
Altitude | < 1000m | |
Enclosure Rating | IP20 | |
Wall | ||
Cooling | Forced Air-cooling |
