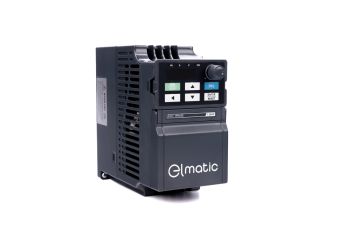

Vector Control Inverter | 0.4kW-3.7kW 1X230VAC
ED2200
Vector inverter with single-phase power supply 1 x 230V AC
- Compact design, simple operation;
- Sensorless vector control and U/f control;
- Simple PLC function;
- RS485 port, Modbus RTU protocol;
- Wall mounting;
- 6 digital inputs, 2 relay outputs, 1 analog input 0-10V, 0/4-20mA;
- Built-in PID controller;
- Multispeed function - up to 15 speed settings;
- Built-in LED display
from €159.90 €130.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Vector Control Inverter | 0.4kW-3.7kW 1X230VAC
Models
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-00R4GVFD EPD: 0,4kW,230VAC,1PH,VectorRecommended
In stockWarranty: €189.42 €154.00€189.42Login to check your price ED2200-00R4GVFD EPD: 0,4kW,230VAC,1PH,VectorRecommended
Availability:In stockNet price:€189.42 €154.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-0R75G-CFalownik EPD: 0,75kW,230VAC,1PH,V,EMCIn stockWarranty: €204.18 €166.00€204.18Login to check your price ED2200-0R75G-CFalownik EPD: 0,75kW,230VAC,1PH,V,EMCAvailability:In stockNet price:€204.18 €166.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-01R1GVFD EPD: 1,1kW,230VAC,1PH,VectorIn stockWarranty: €159.90 €130.00€159.90Login to check your price ED2200-01R1GVFD EPD: 1,1kW,230VAC,1PH,VectorAvailability:In stockNet price:€159.90 €130.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-01R5G-CFalownik EPD: 1,5kW,230VAC,1PH,V,EMCIn stockWarranty: €214.02 €174.00€214.02Login to check your price ED2200-01R5G-CFalownik EPD: 1,5kW,230VAC,1PH,V,EMCAvailability:In stockNet price:€214.02 €174.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-02R2GVFD EPD: 2,2kW,230VAC,1PH,VectorIn stockWarranty: €248.46 €202.00€248.46Login to check your price ED2200-02R2GVFD EPD: 2,2kW,230VAC,1PH,VectorAvailability:In stockNet price:€248.46 €202.00 -
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddED2200-03R7G-CFalownik EPD: 3,7kW,230VAC,1PH,V,EMCIn stockWarranty: €280.44 €228.00€280.44Login to check your price ED2200-03R7G-CFalownik EPD: 3,7kW,230VAC,1PH,V,EMCAvailability:In stockNet price:€280.44 €228.00
Description
Elmatic's inverters are three series of inverters designed for different applications and environments:
- EL1000 - for light duty applications not requiring high starting torque;
- >> Here you are! >> ED2000 - for applications requiring higher precision speed control;
Check the model with 3x400VAC three-phase power supply - EDS - dedicated to pump or fan applications because of its reinforced housing (IP65).
Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In advanced ED2000 inverters with 230VAC single-phase power supply, these will include:
- RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
- Built-in PID controller;
- Simple PLC;
- Multispeed function - up to 15 speed settings;
- 'Energy saving' function;
- Free configuration program.
The ED2000 series inverter is:
- Sensorless vector control or U/f scalar control;
- Compact housing, simple operation;
- 6 programmable digital inputs;
- 2 relay outputs;
- 1 analog input 0-10V, 0/4-20mA;
- Built-in LCD display and potentiometer;
- Wall mounting.
Technical Specification
Technical data
Power | Input Voltage | 170-240VAC, Single Phase 330-440VAC, Three Phase |
Input Frequency | 50/60 Hz | |
Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
0.1-320Hz | ||
Overload Capacity | HD: 150% by 60s; 180% by 3s ND: 120% by 60s; 150% by 3s |
|
Control | Control Method | Sensorless flux vector control (SFVC) ; V/F control |
Control Setting | MODBUS, Analog, Digital, PID, Multispeed (15 speeds) | |
Communication | MODBUS RTU RS-485 | |
Input | Analog Inputs | 1 input 0-10V or 0-20mA |
Digital Inputs | 6 inputs (including 1 HDI 100kHz) | |
Output | Analog Outputs | 1 output 0-10V 0-20mA |
Digital Outputs | 1 Multi-function output terminal 48VDC/50mA | |
Relay Outputs | 1 Programmable Multi-functional Output | |
Features | 3-wire control | √ |
Connection of the braking resistor | √ | |
Built-in potentiometer | √ | |
General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
Altitude | < 1000m | |
Enclosure Rating | IP20 | |
Wall | ||
Cooling | Forced Air-cooling |
