ELMATIC HAWK
Industrial mini PC, fanless, Core i3-7100U, 8GB RAM, 256 GB SSD, Windows 10 IoT LTSC
- 2x 2.5 GbE LAN (RJ-45)
- 1x RS-232/422/485, 5x RS-232
- 4x USB 2.0, 4x USB 3.2
- 1x HDMI, 1x DisplayPort
- 16-bit GPIO (8*GPI; 8*GPO)
- Operating temperature -10~45°C
from €1,281.66 €1,042.00
Do you have an account? Log in, to see our prices and get your discount
In stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist - Price:
Your Price Items Quantity AddELMATIC HAWK STD IoTBoxPC i3-7100U,8GB,256GB SSD,Win10IoTIn stockWarranty: €1,281.66 €1,042.00€1,281.66Login to check your price ELMATIC HAWK STD IoTBoxPC i3-7100U,8GB,256GB SSD,Win10IoTAvailability:In stockNet price:€1,281.66 €1,042.00
Description

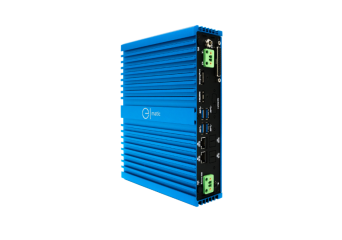

The ELMATIC HAWK is a compact, fanless Box PC equipped with an Intel Core i3-7100U processor, 8 GB of RAM, and 256 GB of built-in mSATA SSD storage. The device offers two 2.5 GbE LAN ports (RJ-45), one RS-232/422/485 port, five RS-232 ports, four USB 2.0 ports, four USB 3.2 ports, one HDMI output, one DisplayPort output, and 16-bit GPIO (8 inputs and 8 outputs). The operating temperature range is from -10°C to 45°C. Windows 10 IoT LTSC is included in the package.
Technical Specification
Technical data
| Model | |||
| Model | ELMATIC HAWK STD IoT | ||
| CPU | |||
| CPU | Intel Core i3-7100U | ||
| Memory | |||
| Memory | Built-in 8 GB SODDR4 | ||
| Storage | |||
| Slot 2,5" HDD | - | ||
| M.2 | - | ||
| Slot mSATA | Built-in 256 GB SSD mSATA | ||
| Expansions | |||
| Slot M.2 | - | ||
| Slot miniPCIe | 2 x full-size | ||
| I/O | |||
| DisplayPort | 1 | ||
| HDMI | 1 | ||
| Audio | Mic in, Line out | ||
| Gigabit Ethernet | 2 x 2.5 GbE LAN (RJ-45) | ||
| USB 3.2 | 4 | ||
| USB 2.0 | 4 | ||
| Serial Ports | 1 x RS-232/422/485 | ||
| GPIO | 16-bit GPIO (8*GPI; 8*GPO) | ||
| CANbus | - | ||
| Operating System | |||
| Operating System | Windows 10 IoT LTSC included | ||
| Environment | |||
| Working temperature | -10 ~ 45°C | ||
