Elmatic EagleEYE 150
High-end industrial VMS server for up to 150 cameras. High performance, reliability and 100% assurance of long-term video data storage.
- 4U industrial rack enclosure
- Number of channels: up to 150
- Up to 144TB Memory (4 or 8 hot-swap bays)
- Redundant power supply
Do you have an account? Log in, to see our prices and get your discount
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Elmatic EagleEYE 150
Description

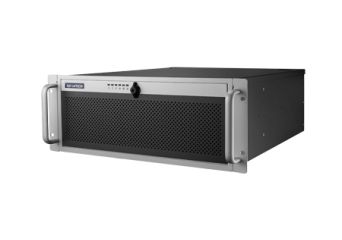

EagleEYE 150 is a powerful server designed to handle up to 150 channels, offering a maximum disk capacity of up to 144TB. Enclosed in a 4U chassis with dimensions of 426 x 177 x 600 mm, it is suitable for mounting in a 19" rack cabinet.
The server is equipped with an ASMB-816 motherboard and a XEON Silver 4310 processor, supported by 32 GB of RAM. There is an option to install a dedicated graphics card. It features five RJ45 network ports. The operating system is Windows Server Standard 2022 PL.
EagleEYE 150 includes a 256 GB M.2 NVMe system disk and supports four 3.5" hot-swap storage disks, with an option to expand to eight. RAID 0/1 configurations are supported in software, with hardware RAID optionally available. Power is provided by a 500W power supply, with optional redundancy.
Technical Specification
Technical data
| General Information | |
|---|---|
| Number of Channels (maxx reccomended) | 150 |
| Disk capacity (max) | Up to 144TB |
| Chassis | |
| Model | HPC-7442 |
| Format | Rack 4U |
| Dimensions | 426 x 177 x 600 mm |
| Mounting | Rack 19" |
| Motherboard | |
| Model | ASMB-816 |
| Processor | XEON Silver 4310 |
| RAM | 32 GB |
| Graphics | Optional |
| Video Ports | 1x VGA (For installation purposes, not for live display) |
| Ethernet | 5 x RJ45 (1 dedicated port for BMC) |
| Operating System | Windows Server Standard 2022 PL |
| Storage | |
| System disk | 256 GB (M.2 NVMe) |
| Storage | 4x 3,5” (hot-swap), optionally up to 8x 3,5” (hot-swap) |
| RAID | 0/1 software, hardware (optional) |
| Power Supply | |
| Power | 500W |
| Power supply redundancy | Optional |
