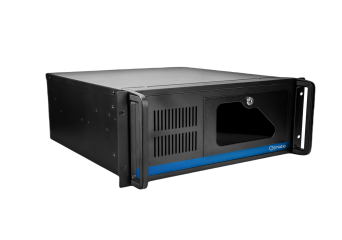

Technical data
| Chassis | ||
|---|---|---|
| Storage | 5.25" | 4x available from outside |
| 3.5" | 1x available from outside and 2x from inside | |
| Dimensions (W. x D. x H.) |
480 x 480 x 176.8 mm | |
| Chassis weight | 15.6 kg | |
| Front I/O | 2 x USB 3.0 | |
| Chassis cooling | 12 cm front cooler and 8 cm back cooler | |
| Other | Temperature, voltage and fan monitoring | |
| MODEL | MS-98L9 | MS-98N9 SKU 1 | MS-CF05 SKU 2 | MS-CF06 |
| Processor | Intel® Core™ i7 / i5 / i3 / Pentium / Celeron VI/VIIth gen. | Intel® Xeon®, Core™ i9/i7/i5/i3, Pentium®, Celeron® Xth gen | Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron® XII/XIII/XIVth gen | Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron® XII/XIII/XIVth gen |
| Socket | LGA 1151 | LGA 1200 | LGA 1700 | |
| RAM | ||||
| Technology | Dual - channel DDR4 2133 MHz | Dual-channel DDR4 (ECC/non-ECC) 2933 MHz | Dual-channel DDR5 (non-ECC) 4400 MHz |
Dual-channel DDR5 (non-ECC) 4800 MHz |
| Capacity | Up to 32GB | Up to 128GB | Up to 64GB | |
| Socket | 2 x 288 - in UDIMMs | 4 x 288-pin UDIMMs | 4 x 288-pin UDIMMs | 2 x 288-pin UDIMMs |
| Graphics | ||||
| Controller | Intel® HD Graphics | Intel® UHD Graphics | ||
| Graphic memory | Depends on chosen processor | |||
| VGA | 1 (do 1920 x 1080 @60Hz) | 1 (do 1920 x 1200 @60Hz) | ||
| HDMI | 1 (do 4096 x 2160 @24Hz) | 1 (do 4096 x 2160 @60Hz) | 1 (do 4096 x 2160 @24Hz) | |
| DisplayPort | - | 1 (do 4096 x 2304 @60Hz) | - | |
| eDP | - | 1 eDP up to 4096 x 2304 @60Hz | - | |
| Ethernet | ||||
| Controller | 1 x Intel® I219 - LM GbE LAN PHY | 2 x Intel® I225-LM 2.5GbE LAN |
1 x Intel® I219LM GbE LAN PHY 1 x Intel® I225-V 2.5GbE LAN |
|
| 1 x Intel® I211 - AT GbE LAN | 3 x Intel® I210-AT GbE LAN | |||
| Audio | ||||
| Controller | Realtek® ALC887-VD2-CG Audio Codec | Realtek® ALC888S-VD2-GR Audio Codec | Realtek® ALC897 Audio Codec (Co-lay ALC888S) | Realtek® ALC897 Audio Codec (Co-lay ALC888S) |
| H/W Monitor | ||||
| Watchdog Timer | 256 - level Watchdog Timer | |||
| Smart Fan | Yes | |||
| TPM | ||||
| Controller | Box header connector on the board | Infineon SLB 9670VQ2.0 | Infineon® SLB9672VU2.0 | Infineon® SLB9672VU2.0 |
| I/O | ||||
| USB | 5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A) 4 x USB 3.2 Gen 1 (rear) | 6 x USB 3.2 Gen 2 (6 x rear) 2 x USB 3.2 Gen 1 (2 x internal) 5 x USB 2.0 (2 x rear, 3 x internal with one Vertical Type-A Connector) | 8 x USB 3.2 Gen 2 x1 Ports (8 x Rear) 2 x USB 3.2 Gen 1 Ports (2 x Internal) 3 x USB 2.0 Ports (3 x Internal with one Vertical Type-A Connector) | 2 x USB 3.2 Gen 2 x1 Ports (2 x Rear) 2 x USB 3.2 Gen 1 x1 Ports (2 x Rear) 5 x USB 2.0-Ports (2 x Rear, 3 x Internal with one Vertical Type-A) |
| Serial ports | 6 x COM ports (2 x rear, 4 x internal) COM1: RS-232/422/485, 0V/5V/12V, Auto-flow Control COM2~6: RS-232, COM2: 0V/5V/12V | 10 x COM ports (1 x rear, 9 x internal) COM1~2: RS232/422/485, Ring/0V/5V/12V, Auto-flow Control COM3~6: RS232/422/485 with 0V/5V/12V Auto-flow Control Supported COM7~10: RS-232, 0V/5V/12V | 6 x COM-Ports for COM1 ~ 6 (1 x Rear, 5 x Internal) COM1/2 RS232/422/485 with Ring/0V/5V/12V Auto-flow Control Supported (Default set to Ring) COM3/4/5/6 RS-232 with 0V/5V/12V | 6 x COM-Ports for COM1 ~ 6 (2 Rear, 4 x Internal) COM1 RS-232/422/485 0V/5V/12V, Auto-flow Control Supported COM2/3/4/5/6 RS-232, COM2 0V/5V/12V |
| Parallel | - | 1 x LPT | Yes | - |
| PS/2 | 1 | 1 x PS/2 port by Y-cable for keyboard and mouse | ||
| GPIO | 8-bits (4 x GPI; 4 x GPO by default), 5V 8-bits (8 x GPI or 8 x GPO by request), 5V | 16-bits (8 x GPI; 8 x GPO), 5V | 16-bits (8 x GPI; 8 x GPO), 5V | 8-bits (4 x GPI; 4 x GPO), 5V |
| Expansions | ||||
| PCIe x16 | 1 | 1 (Signal configured as 1 PCIe x16 or 2 PCIe x8) | 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8) | 1 |
| PCIe x4 | 1 (PCIe x16 Slot Type) | 3 | 4 | 1 |
| PCIe x1 | - | |||
| PCI | 5 | 2 | - | 5 |
| M.2 | - | 3 x M.2 M key (PCIe x4 NVMe, signal shared with PCIe Slot 1 & 3 & 5), two with 2242/2260/2280, one with 2242/2260/2280/22110 | 1 x M key (Signal from CPU) 2280/22110, 1 x M key (Signal Shared by PCIe Slot5) 2242/2280 | - |
| Mini-PCIe | - | 1 x Full-size/Half-size | - | |
| Mass memory | ||||
| SATA | 4 x SATA 3.0 | 4 x SATA 3.0 (RAID 0/1/5/10) | 4 x SATA 3.0 (RAID 0/1/5/10) | 4 x SATA 3.0 |
| Environment | ||||
| Working temp. | -10 ~ 60°C | 0 ~ 60°C | 0 ~ 60°C | |
| Humidity | 10 ~ 90%, non-condensing | 10 ~ 90%, non-condensing | ||
| OS Support | Windows 10 (64-bit) Windows 7 (32/64-bit) (Skylake-S Series CPU Only) Windows 8.1 (64-bit) (Skylake-S Series CPU Only) Linux Fedora 25 (by request) Linux Ubuntu 16.04 (by request) | Windows 10 IoT Enterprise 2019 SAC (64-bit, RS5) Windows 10 IoT Enterprise LTSC (64-bit, RS5) Windows 11 IoT Enterprise LTSC (64-bit) Linux Kernel 5.4 | Windows 10 IoT Enterprise 2021 LTSC (64-bit) Windows 11 IoT Enterprise 22H2 (64-bit) Linux (Support by request) Noted : All driver base on Intel & chip vendor supported | Windows 10 IoT Enterprise 2021 LTSC (64-bit) Windows 11 IoT Enterprise 22H2 (64-bit) Linux (Support by request) Noted : All driver base on Intel & chip vendor supported |
