Technical data
| MODEL | AIMB-787 | AIMB-788 |
|---|---|---|
| Processor | Core i9/i7/i5/i3 10. gen | Core i9/i7/i5/i3 12th/13th gen |
| CPU Socket | LGA 1200 | LGA 1700 |
| RAM | ||
| Technology | DDR4 2400/2666/2933 | DDR4 3200 |
| Capacity | Up to 128 GB | Up to 128GB |
| Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| GPU | ||
| Controller | Intel® HD Graphics | |
| GPU Memory | Depends on the selected processor | |
| VGA | 1 (Up to 1920 x 1200 @60Hz) | 1 (Up to 1920 x 1200 @60Hz) |
| DVI-D | 1 (Up to 1920 x 1200 @60Hz) | - |
| DisplayPort | 1 (Up to 4096 x 2304 @60Hz) | 1 (Up to 4096 x 2304 @60Hz) |
| HDMI | - | 1 (Up to 3840 x 2160 @60Hz) |
| Ethernet | ||
| Controller | GbE LAN1: Intel I219-LM (PHY) GbE LAN2: Intel I210-AT |
GbE LAN1: Intel I219-LM (PHY) GbE LAN2: Intel I210-AT |
| Audio | ||
| Controller | 2 (Line-out, Mic-in) | |
| H/W Monitor | ||
| Watchdog Timer | 256 - level Watchdog Timer | |
| I/O | ||
| USB | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (Back) | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (Back) |
| 2 x USB 3.1 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0 Type-A connector (inside) | 2 x USB 3.1 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0 Type-A connector (inside) | |
| COM | 1 x RS-232 (back) 4 x RS-232, 1 x RS-232/422/485 (inside) |
1 x RS-232 (back) 4 x RS-232, 1 x RS-232/422/485 (inside) |
| Expansion Slots | ||
| PCIe x16 | 1 | 1 |
| PCIe x8 | - | 1 |
| PCIe x4 | 4 | 3 |
| PCIe x1 | - | - |
| PCI | 2 | 2 |
| Mass memory | ||
| SATA | 4 x SATA III (up to 600 MB/s) | 4 x SATA III (up to 600 MB/s) |
| Working environment | ||
| Working temp | 0 ~ 60°C | 0 ~ 60°C |
| Working humidity | 95%,no condensation | |
| OS | Windows, Linux | |

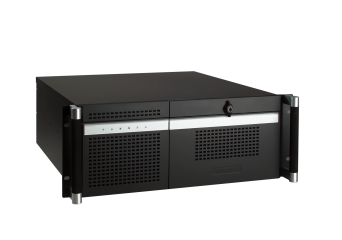

| Chassis | ||
| Model | ACP-4320MB-00BE | |
| Dim | 482 x 177 x 479 mm | |
| Weight | 17.6kg | |
| Front I/O | PS/2, USB | |
| HDD/SSD | Dwie kieszenie SerialATA HOT SWAP na dyski 3,5" od frontu | |
| Additional | Convenient replacement of the air filter Temperature, voltage and fan monitoring Possible installation of a redundant power supply Shock resistance during operation: 10 G Vibration resistance: 1 G |
|
