Technical data
| MODEL | AIMB-787 Motherboard version | AIMB-788 Motherboard version |
| Processor | Core i9/i7/i5/i3 (10 gen) | Core i9/i7/i5/i3 (12/13/14 gen) |
| CPU Socket | LGA 1200 | LGA 1700 |
| RAM | ||
| Technology | DDR4 RAM | DDR4 RAM |
| Capacity | Up to 128GB | Up to 128GB |
| Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| Graphics | ||
| Controller | Intel® HD Graphics | |
| GPU memory | Depends on chosen processor | |
| VGA | 1 | 1 |
| DVI-D | 1 | - |
| DisplayPort | 1 | 1 |
| HDMI | - | 1 |
| Ethernet | ||
| Controller | GbE LAN1: Intel I219-LM, GbE LAN2: Intel I210-AT | GbE LAN1: Intel I219-LM, GbE LAN2: Intel I210-AT |
| I/O | ||
| USB | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (rear) | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 (rear) |
| 2 x USB 3.1 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0 Type-A connector (internal) | 2 x USB 3.1 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0 Type-A connector (internal) | |
| COM | 1 x RS-232 (rear) | 1 x RS-232 (rear) |
| 4 x RS-232, 1 x RS-232/422/485 (internal) | 4 x RS-232, 1 x RS-232/422/485 (internal) | |
| Expansions slots | ||
| PCIe x16 | 1 | 1 |
| PCIe x8 | - | 1 |
| PCIe x4 | 4 | 3 |
| PCIe x1 | - | - |
| PCI | 2 | 2 |
| Mini-PCIe | - | - |
| Mass memory | ||
| SATA | 4 x SATA | 4 x SATA |
| Environment | ||
| Working temp. | 0 ~ 60°C | 0 ~ 60°C |
| Working humidity | 95%, non-condensing | |
| OS Support | Windows, Linux | |
| Chassis | ||

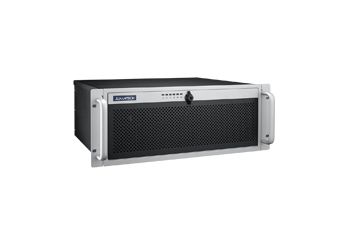

| Model | ACP-4020MB-50B | |
| Dimensions | 482 x 177 x 348 mm | |
| Weight | 8.5kg | |
| Front I/O | 2 x USB 3.0 (front panel) | |
| HDD/SSD | 2 x 3.5" (Front access) and 1 x 2.5' (Inside access) | |
| Additional | Temperature, voltage and fan monitoring | |
| Only 348 mm depth | ||
| Possibility of remote management with SUSIAccess | ||
| Designed to work in harsh conditions, shock, vibration and temperature | ||
| Shock resistance during operation: 10 G | ||
| Vibration resistance: 1 G | ||
