Technical data

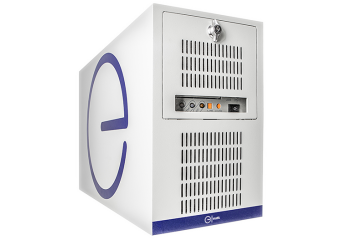

| MODEL | PI 785 |
|---|---|
| Processor | Intel® Core™ i7 / i5 / i3 VI/VII gen., Pentium G44xx, Celeron G39xx |
| CPU Socket | LGA 1151 |
| RAM | |
| Technology | Dual Channel Non-ECC UDIMM DDR4 1866/2133 |
| Capacity | Do 64 GB |
| Socket | 4 (288-pin DIMM) |
| Grafika | |
| Kontroler | Intel® HD Graphics |
| Pamięć grafiki | Depends on selected processor |
| VGA | 1(do 1920 x 1200 @60Hz) |
| DVI-D | 2 (do 1920 x 1200 @24Hz) |
| DisplayPort | - |
| Ethernet | |
| Controller | GbE LAN1: Intel I219LM GbE LAN2: Intel I210-AT |
| H/W Monitor | |
| Watchdog Timer | 255 - level Watchdog Timer |
| Smart FanFunction | Yes |
| TPM | |
| Controller | Optional, TPM2.0 |
| I/O | |
| USB | 6 x USB 3.0 + 6 x USB 2.0 + 1 x USB 2.0 type A |
| COM | 4 x RS-232 + 1 x RS-232/422/485 |
| Parallel | 1 x LPT, 8bit GPIO |
| PS/2 | Optional |
| GPIO | 8-bits |
| Expansions | |
| PCIe x16 | 1 |
| PCIe x4 | 3 |
| PCIe x1 | - |
| PCI | 3 |
| M.2 | - |
| Mini-PCIe | - |
| Mass Memory | |
| SATA | 6 x SATA 3.0 |
| Environment | |
| Working temp. | -10 ~ 60°C |
| Working humidity | 10 ~ 90%, non condensing |
| OS | Windows 10 (64-bit) Windows 7 (32/64-bit) (Skylake-S Series CPU Only) Windows 8.1 (64-bit) (Skylake-S Series CPU Only) Linux Fedora 23 (by request) Linux Ubuntu 16.04 (by request) |
