Dane techniczne

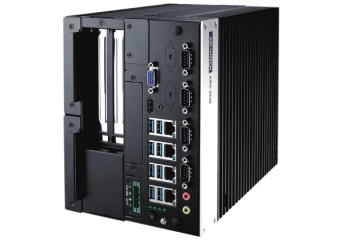

| Model | ARK-3530F | ARK-3530L |
| Procesor | ||
| CPU | Socket, Core i3/i5/i7, 6 i 7 generacja | |
| Taktowanie | W zależności od wybranego procesora | |
| L3 Cache | W zależności od wybranego procesora | |
| TDP | Do 65W | |
| Chipset | C236 | |
| BIOS | AMI EFI 128Mbit | |
| Pamięć RAM | ||
| Technologia | DDR4 2133 MHz | |
| Max. pojemność | 32 GB | |
| Socket | 2 x 260-pin SO-DIMM | |
| Grafika | ||
| Chipset | Intel® HD Graphics 630 | |
| Silnik Grafiki | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | |
| VGA | 1920x1200@ 60Hz | |
| HDMI | 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz | |
| Opcjonalny 3 moduł wideo | DVI-D / DP / HDMI Display Port | |
| Tripple Display | VGA+HDMI + opcjonalny 3 moduł wideo | |
| Ethernet | ||
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan | |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan | |
| LAN3 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan | Brak |
| LAN4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan | Brak |
| Audio | ||
| Interfejs | Realtek ALC888S, High Definition Audio, Line-out, Mic-in | |
| Inne | ||
| Watchdog Timer | 255-level timer interval, setup by software | |
| TPM | TPM 2.0 (projektowo) | |
| I/O | ||
| Porty Szeregowe | 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) | |
| USB | 8 x USB 3.0 ports | |
| PS/2 | 1 Port support by cable and bracket (Optional) | |
| Opcjonalne I/O | 16bit DIO or 2 x RS-232 ports | |
| Rozszerzenia | ||
| Mini PCIe | 2 x Full-size Mini PCIe (2 x support mSATA, 1 x support SIM holder) | |
| M.2 | 1 x E key for WiFi | |
| iDoor | 1 set (Optional) | |
| Add-on Card Slot | Maximum card size 110mm (H) x 180mm (L) Suggest maximum power consumption 10W for each slot 2 Slots PCI (Default) 2 Slots PCIex8 (Option AMO-R026) 1 Slots PCIex16 (Support by project) |
Brak |
| ARK Plus | Brak | AMO-3505E 2 slot Riser card for 2 x PCI, AMO-3506E 2 slot Riser card for 2 x PCIex8 |
| Pamięć masowa | ||
| 2.5" HDD/SSD | 2 x 2.5" SATAIII HDD Bay with Max Height 15mm (Support Up to 4 x 2.5" SATAIII HDD Bay by Optional AMK-A0028E) | |
| mSATA | 2 x mSATA socket (Share with Mini PCIe) | |
| Wsparcie systemowe | ||
| Microsoft Windows | Windows 10 (Windows 7 for 6th Gen CPU only) | |
| Linux | By Project Support | |
| Zasilanie | ||
| Rodzaj | AT/ATX | |
| Napięcie zasilania | 9-36VDC | 12VDC (9~36VDC opcjonalnie) |
| Zasilacz | AC do DC, 150W (opcja) | |
| Pobór mocy (CPU+RAM) | ||
| Typowy | 25.68W | |
| Max | 88.92W | |
| Cechy mechaniczne | ||
| Materiał | Aluminium | |
| Mocowanie | Desk mounting | |
| Wymiary (Szer. x Wys. x Głęb.) | 156.5 x 205 x 230 mm | 105 x 205 x 230 mm |
| Masa | 5.87Kg | 5.1Kg |
| Środowisko pracy | ||
| Temp. pracy | 25W/35W/65W(only 6th Gen) Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow | |
| Temp. magazynowania | -40 ~ 85° C | |
| Wilgotność | 95% @ 40° C (non-condensing) | |
| Wibracje podczas pracy | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Wstrząsy podczas pracy | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |
| EMC | CE/FCC Class B, CCC, BSMI | |
| Bezpieczeństwo | CB, UL, CCC, BSMI | |
