Technical data

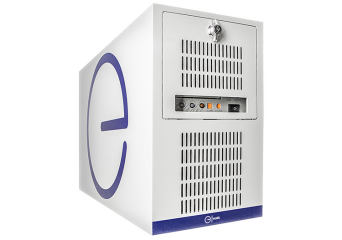

| MODEL | PI 787 |
|---|---|
| Processor | Intel® Core™ i9 / i7 / i5 / i3 X generacji, Pentium G64xx, Celeron G59xx |
| CPU Socket | LGA 1200 |
| RAM | |
| Technology | Dual Channel(Non-ECC) DDR4 2933 |
| Capacity | Do 128 GB |
| Socket | 4 x 288 - UDIMMs |
| Graphics | |
| Controller | Intel® HD Graphics |
| Graphics | Depends on processor |
| VGA | 1 (do 1920 x 1200 @60Hz) |
| DVI-D | 1 (do 1920 x 1200 @24Hz) |
| DisplayPort | - |
| Ethernet | |
| Controller | GbE LAN1: Intel I219-LM |
| GbE LAN2: Intel I210-AT | |
| H/W Monitor | |
| Watchdog Timer | 255 - level Watchdog Timer |
| Smart Fan Function | Yes |
| TPM | |
| Controller | Optional, TPM2.0 |
| I/O | |
| USB | 6 x USB 3.2 Gen 1 |
| 2x USB 2.0 front, 2 x USB 2.0 type A | |
| COM | 1 x RS-232 (rear panel), 4 x RS-232, 1 x RS-232/422/485 |
| Parallel | 1 x LPT, 8bit GPIO |
| PS/2 | Optional |
| GPIO | 8-bits |
| Expansions | |
| PCIe x16 | 1 |
| PCIe x4 | 1 |
| PCIe x1 | - |
| PCI | 2 |
| M.2 | 1 |
| Mini-PCIe | - |
| Mass Memory | |
| SATA | 4 x SATA 3.0 |
| Environment | |
| Working temp. | -10 ~ 60°C |
| Working humidity | 95%, non condensing |
| OS | Windows 11 Windows 10 (64-bit) Windows 7 (32/64-bit) (Skylake-S Series CPU Only) Windows 8.1 (64-bit) (Skylake-S Series CPU Only) Linux Fedora 23 (by request) Linux Ubuntu 16.04 (by request) |
